Detached Garage Construction in Springfield, Missouri - Insulated Post-Frame Garages
DETACHED GARAGE CONSTRUCTION ยท SPRINGFIELD, MO

Detached Garage Construction in Springfield, MO | Insulated Post-Frame Garages

Pole Barn Builders Springfield MO offers detached garage construction for the entire Springfield, Missouri area. A post-frame garage gives you more clear span per dollar than stick framing, which matters the moment you want a third bay, a lift, or a boat parked next to the truck.

Call 502-709-6108 Now โ†’

Get a Free Quote

Tell us about your project, we'll call you back fast.

We'll respond same-week. Need to talk now? Call 502-709-6108.

90 MPH
Engineered Wind Rating
20 PSF
Ground Snow Load Basis
18โ€“24 in
Footing Depth
20+ yrs
Typical Structure Lifespan

Detached Garage Construction in Springfield, MO

A post-frame garage gives you more clear span per dollar than stick framing, which matters the moment you want a third bay, a lift, or a boat parked next to the truck.

  • Wind load: 90 MPH (3-sec gust)
  • Wall framing: 6x6 posts, girt wall system
  • Footing depth: 18โ€“24 in. below grade
  • Slab drainage grade: ~5% fall from structure

Why Post-Frame Works So Well for Garages

Because the wall load runs down through widely spaced posts instead of a stud every 16 inches, a post-frame garage can open up wider bays and taller sidewalls without the header sizes and engineering headaches that come with stick framing. That translates into fewer interior obstructions, easier overhead door placement, and more usable width for a workbench or a second vehicle.

Technical Specs

  • Wind load90 MPH (3-sec gust)
  • Wall framing6x6 posts, girt wall system
  • Footing depth18โ€“24 in. below grade
  • Slab drainage grade~5% fall from structure
  • Insulation-readyBookshelf girt option
  • Siding fastenersStainless / ceramic-coated

Framing That Handles Missouri Wind

Every detached garage we build carries the same 90 MPH wind load engineering as our larger agricultural buildings, using 6x6 ground-contact-rated posts and a diaphragm roof and wall system that spreads gust load across the whole structure instead of concentrating it at the corners.

Girts run horizontally between the posts to carry the wall siding and give overhead door jambs a solid, true attachment point. This matters more than most homeowners realize when a garage door track starts to bind after a few seasons on a poorly-framed opening.

Foundation and Slab Considerations

Footings go 18 to 24 inches below grade to stay below the regional frost line, and we set posts on crushed stone with concrete poured around, not under, the post base. For the slab itself, we grade the site for roughly a 5% fall, about six inches of drop per ten feet, away from the garage so water sheds from the doors instead of pooling at the threshold.

Finish-Out Options

Detached garages are one of the more common candidates for full insulation and interior finish, since they're often used as workshops as much as parking. We can run bookshelf girts for deeper wall cavities, add a vapor/moisture barrier behind the interior steel liner to manage Missouri humidity, and rough in electrical before the walls close up.

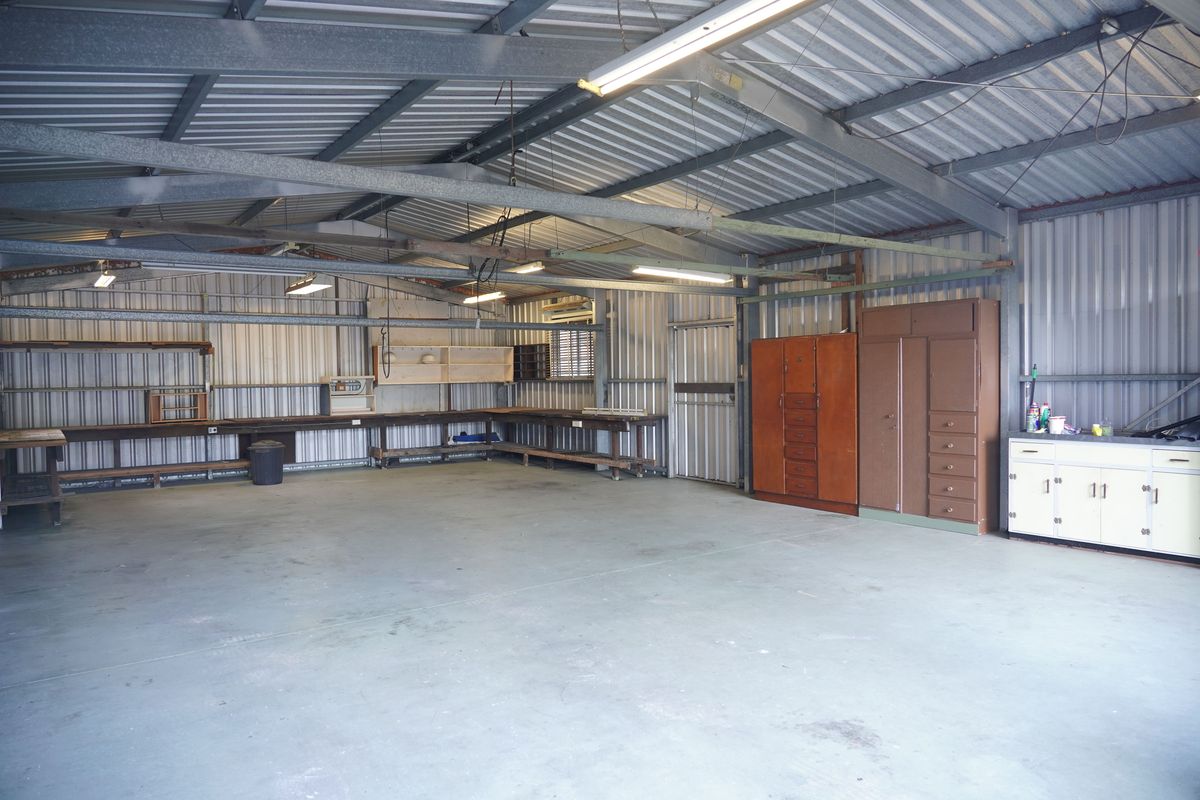

Detached Garage Construction detail - Springfield MO post-frame construction

Why We Build It This Way

Anyone can promise a sturdy building. Here's the difference between a generic sales pitch and an actual engineering answer, the kind you can hold a contractor to rather than just take on faith:

"Our garages are built to last."
"Every garage gets ground-contact-rated 6x6 posts set on crushed stone, stainless fasteners, and girts sized to the door openings you actually need, not a generic 24x24 template."

Insulating for Missouri's Climate Zone

A finished garage lives or dies on how well its wall assembly handles Missouri's specific climate, not just how it looks on day one. Springfield and the surrounding counties fall within IECC Climate Zone 4A, the mixed-humid zone, meaning a building here has to handle a heating-dominated winter and a humid, cooling-dominated summer in the same wall assembly.

  • R-30 baseline. Current energy code guidance for Zone 4 generally calls for the equivalent of R-30 in a cavity wall, or a mix of lighter cavity insulation with continuous rigid board outside the framing.
  • Why bookshelf girts matter here. A standard girt wall doesn't leave enough cavity depth to comfortably hit that R-30 target. A bookshelf-girt wall opens up enough depth without resorting to exterior rigid foam as a workaround.
  • Vapor drive reverses seasonally. The direction water vapor moves through a wall actually flips between January and July in a mixed-humid climate. A barrier placed for winter alone can trap summer humidity instead of blocking it.
  • Barrier placement is climate-specific. We plan barrier placement and venting around that seasonal reversal for this specific climate, not the placement that would be correct in a drier or colder one.
  • Galvanized siding plus a barrier, together. Neither one alone fully manages Missouri's humidity swings. It's the combination that keeps moisture from condensing inside the wall cavity.

Typical Cost & Materials

Typical Cost & Materials

Industry-wide contractor cost guides put a post-frame shell, posts, trusses, roofing. Siding, without concrete or interior finish, at roughly $15 to $40 per square foot, with size, wall height, door count, and steel gauge the biggest swing factors inside that range. Site prep and land clearing commonly add another $2,000 to $8,000 depending on how much grading the lot needs. A poured concrete floor typically runs an additional $4 to $8 per square foot on top of the shell cost. We'll give you a written, itemized estimate specific to your project rather than a phone-quoted range.

$15โ€“$40
Per Sq Ft, Typical Shell
$4โ€“$8
Per Sq Ft, Added Slab
18โ€“24 in
Footing Depth

Frequently Asked Questions

Can I fit a lift or RV in a post-frame garage?
Yes, post-frame construction is well suited to taller sidewalls and wider clear spans than typical stick framing, which is exactly what a vehicle lift or RV bay needs.
Do you pour the slab as part of the build?
We can handle site prep, drainage grading, and the concrete slab as part of the same project, or coordinate with your existing concrete contractor if you prefer.
How wide can the overhead door openings be?
Openings are sized to your vehicles and equipment; because the post spacing is flexible, we can typically accommodate wider single or double door openings than a stick-framed garage of the same footprint.
Is a detached garage always permit-exempt?
No, garages tied to a residence typically require a Greene County or municipal building permit. We'll confirm requirements for your specific address before starting design.
Do you offer a warranty on your work?
Yes, we stand behind our framing and installation work, and can walk you through specific warranty terms, including any manufacturer warranty on steel panels, during your quote.
Can I see examples of similar buildings you've completed?
Yes, ask during your site visit and we can share reference photos and, where possible, put you in touch with a past client for a similar project.
What information do you need to give me an accurate quote?
Rough dimensions, intended use, your address, and any specific features (extra doors, insulation, concrete) get you a meaningfully accurate quote. Exact numbers come after a site visit.
Do you handle the whole project, or do I need to hire separate trades?
We manage framing, foundation, and roofing directly, and coordinate concrete, electrical, and plumbing trades on your behalf so you're not stitching the schedule together yourself.
What happens if we find a problem with the site during excavation?
We flag it immediately rather than working around it quietly. Unexpected soil conditions, old debris, or drainage issues get a straight explanation and a revised written estimate before we continue.
Can I make changes to the design after we've started?
Minor changes are usually workable. We'll tell you upfront if a change affects the price or timeline before we proceed, so there are no surprises on the final invoice.
