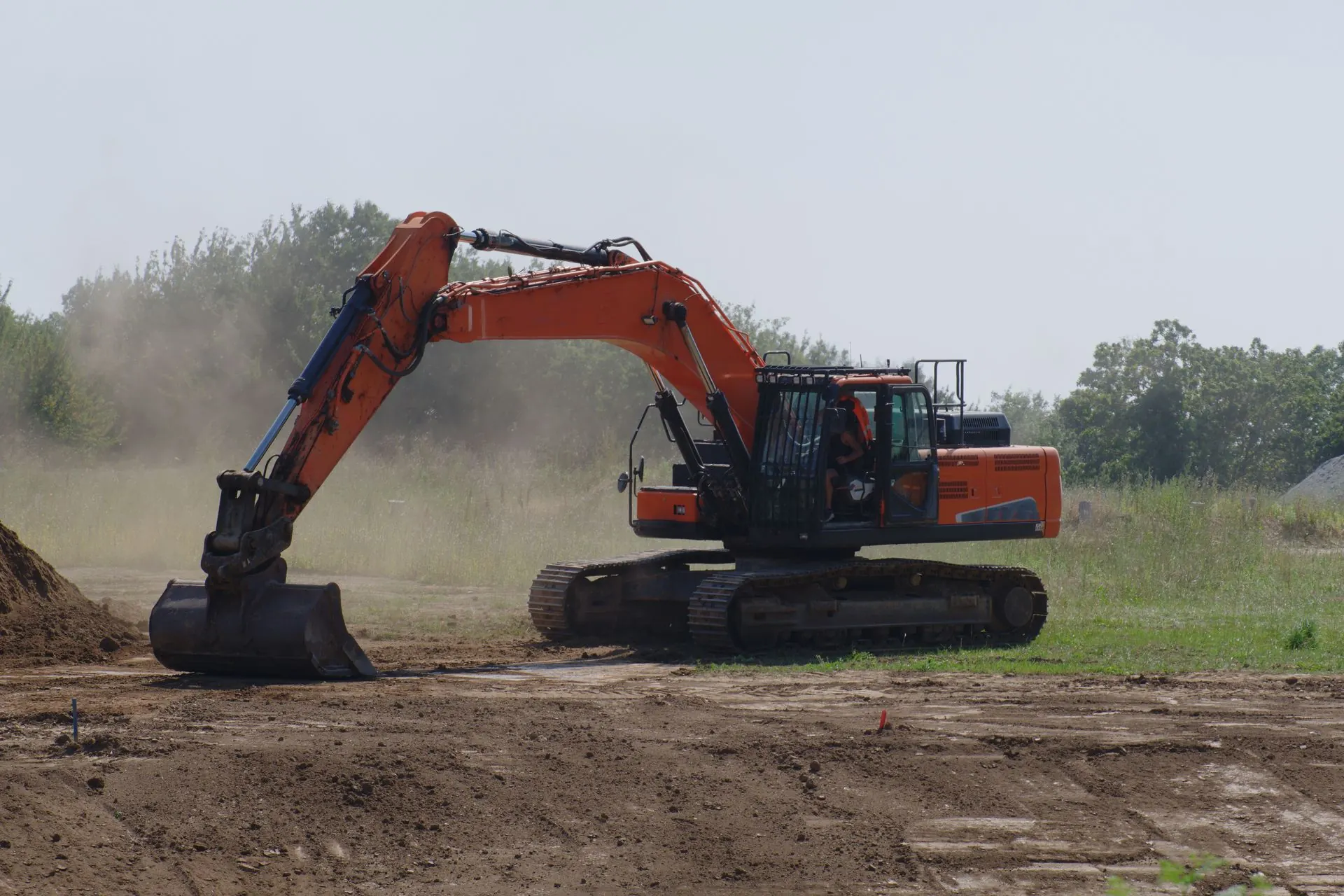

Pole Barn Site Prep & Excavation in Springfield, Missouri - Grading & Footing Layout
POLE BARN SITE PREP & EXCAVATION · SPRINGFIELD, MO

Pole Barn Site Prep & Excavation in Springfield, MO | Grading & Footing Layout

Pole Barn Builders Springfield MO offers pole barn site prep & excavation for the entire Springfield, Missouri area. The single biggest predictor of how well a pole barn ages is decided before a single post goes in the ground, site prep either sets up good drainage or bakes in a moisture problem for decades.

Call 502-709-6108 Now →

Get a Free Quote

Tell us about your project, we'll call you back fast.

We'll respond same-week. Need to talk now? Call 502-709-6108.

90 MPH
Engineered Wind Rating
20 PSF
Ground Snow Load Basis
18–24 in
Footing Depth
20+ yrs
Typical Structure Lifespan

Pole Barn Site Prep & Excavation in Springfield, MO

The single biggest predictor of how well a pole barn ages is decided before a single post goes in the ground, site prep either sets up good drainage or bakes in a moisture problem for decades.

  • Site grading: ~5% fall away from structure
  • Footing excavation depth: 18–24 in. below grade
  • Post base prep: 4 in. crushed stone at each footing
  • Foundation method: Concrete poured around, not under, post

Drainage Grading as the First Real Decision

We grade the building pad for roughly 5% fall, about six inches of drop per ten feet, away from the structure's perimeter in every direction the site allows. This single detail determines whether water sheds away from the building for its entire service life or pools against the walls every time it rains. It's dramatically cheaper to get right during initial grading than to fix after the building is standing.

Technical Specs

  • Site grading~5% fall away from structure
  • Footing excavation depth18–24 in. below grade
  • Post base prep4 in. crushed stone at each footing
  • Foundation methodConcrete poured around, not under, post
  • Utility checkConfirmed before excavation begins
  • Frost line basisRegional SW Missouri standard

Excavating to Actual Frost Depth, Not a Guess

Post footings need to reach 18 to 24 inches below finish grade to stay below the regional frost line for southwest Missouri, excavating shallower than that risks frost heave working the posts loose over successive winters. We lay out and dig each footing to that depth before any post goes in, rather than eyeballing it.

The Crushed Stone Base at Every Post

Before a post goes into its hole, we place four inches of crushed stone at the bottom for drainage, which is what allows us to pour concrete around the post rather than under it. This is arguably the single most important site prep detail on the entire project, since it directly determines how long the posts resist decay at ground contact.

Access, Staging, and Utility Awareness

Before excavation starts, we confirm utility locations, plan equipment access for the build itself, and stage material delivery around the site's actual terrain and any seasonal mud or drainage concerns specific to the property.

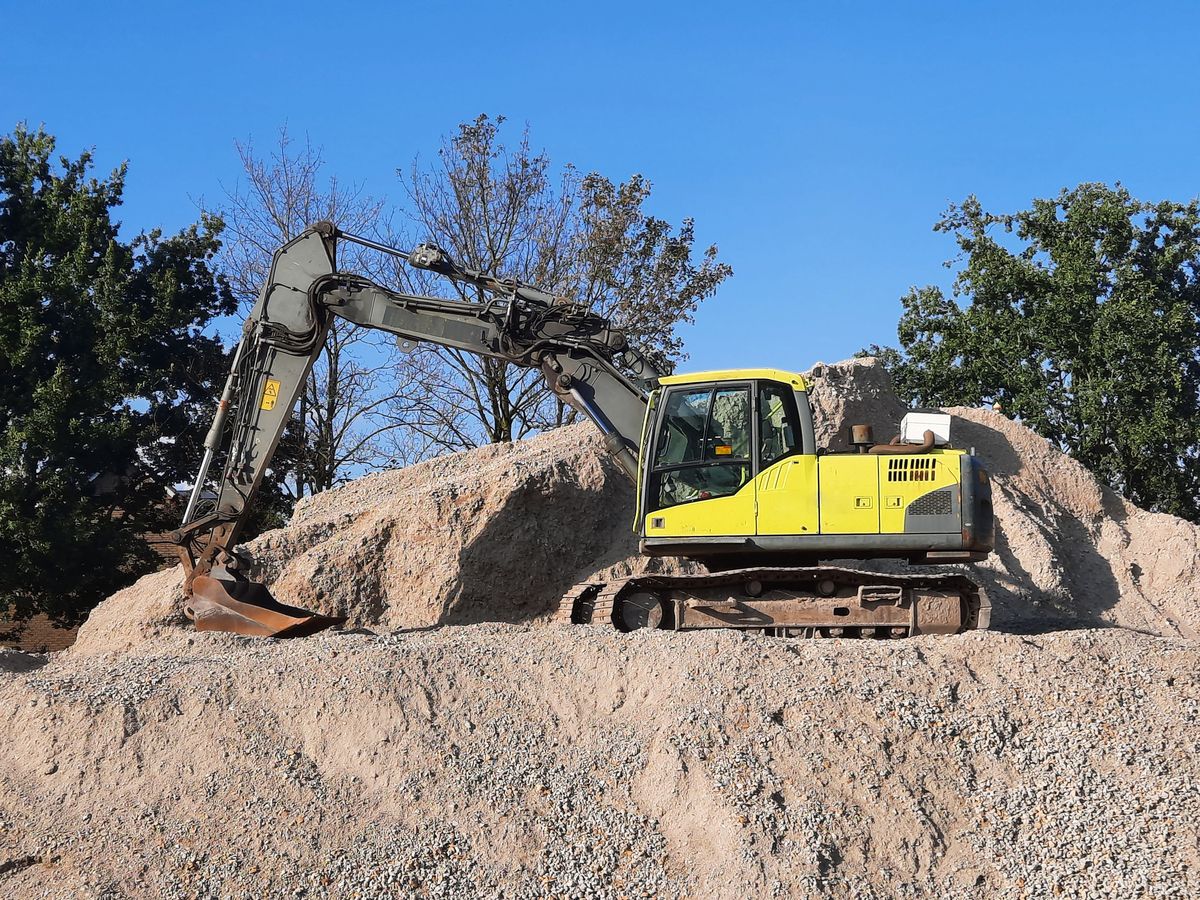

Pole Barn Site Prep & Excavation detail - Springfield MO post-frame construction

Why We Build It This Way

Anyone can promise a sturdy building. Here's the difference between a generic sales pitch and an actual engineering answer, the kind you can hold a contractor to rather than just take on faith:

"We prep the site."
"Footings get excavated to 18–24 inches below grade and every post base gets four inches of crushed stone before concrete goes anywhere near it, the two details that decide whether your building is still square in twenty years."

Building on Ozark Plateau Ground

Site preparation is where southwest Missouri's specific regional geology matters most, before a single post ever goes into the ground. Southwest Missouri sits on the Ozark Plateau, and that geology shapes foundation work here more than most property owners realize.

  • Thin soil, karst bedrock. Much of the region has thin residual soil sitting over karst limestone, so drainage can behave unpredictably from one side of a property to the other.
  • Different from north Missouri. Northern and central Missouri deal with expansive glacial-till clay that can swell four to eight percent when saturated. Southwest Missouri still sees enough seasonal clay movement in low spots to make site-specific grading worth doing right.
  • Why stone, not concrete, under the post. A post set in a poorly draining pocket of clay or thin karst soil, with concrete poured directly beneath it, has nowhere for trapped moisture to go. Crushed stone gives it somewhere to drain.
  • Soil testing is cheap insurance. The University of Missouri's Soil and Plant Testing Laboratory offers analysis through local extension offices for about $15 a sample, worth it on any site with drainage history.
  • Freeze-thaw cycling. Ground moisture repeatedly freezes, expands, thaws, and settles each winter. A footing that doesn't reach below the frost line gets pushed and pulled by that cycle year after year, which is the real mechanism behind frost heave.
  • Ground-contact lumber matters more here. Wet, uneven-draining soil is exactly the condition .60 CCA or ACQ treatment is rated for. A lower treatment grade simply won't hold up as long in this ground.

Typical Cost & Materials

Typical Cost & Materials

Industry-wide contractor cost guides put a post-frame shell, posts, trusses, roofing. Siding, without concrete or interior finish, at roughly $15 to $40 per square foot, with size, wall height, door count, and steel gauge the biggest swing factors inside that range. Site prep and land clearing commonly add another $2,000 to $8,000 depending on how much grading the lot needs. A poured concrete floor typically runs an additional $4 to $8 per square foot on top of the shell cost. We'll give you a written, itemized estimate specific to your project rather than a phone-quoted range.

$15–$40
Per Sq Ft, Typical Shell
$4–$8
Per Sq Ft, Added Slab
18–24 in
Footing Depth

Frequently Asked Questions

Do you handle the excavation and building both, or just one?
We handle site prep and excavation as part of the overall build, so grading and footing depth are coordinated directly with the framing plan rather than handed off between separate contractors.
What happens if my site doesn't drain well naturally?
We assess the site's existing drainage pattern before grading and can adjust the pad height, add swales, or route water around the building as needed, every site is a little different.
How deep do footings really need to be in this area?
18 to 24 inches below finish grade is the standard for southwest Missouri's frost line, and we excavate to that depth on every project regardless of building size.
Can you prep a sloped or uneven site?
Yes, sloped sites just require more grading and sometimes a retaining detail on the downhill side, which we plan for during the site visit before finalizing the quote.
Do you handle the whole project, or do I need to hire separate trades?
We manage framing, foundation, and roofing directly, and coordinate concrete, electrical, and plumbing trades on your behalf so you're not stitching the schedule together yourself.
What happens if we find a problem with the site during excavation?
We flag it immediately rather than working around it quietly. Unexpected soil conditions, old debris, or drainage issues get a straight explanation and a revised written estimate before we continue.
Can I make changes to the design after we've started?
Minor changes are usually workable. We'll tell you upfront if a change affects the price or timeline before we proceed, so there are no surprises on the final invoice.
How do you handle bad weather during construction?
We build around the forecast where we can, and pause framing during high wind or heavy rain rather than rushing a step that affects the structure's long-term integrity.
Do you offer financing?
We can point you toward financing options for qualifying projects. Ask during your quote call so we can factor it into your written estimate.
How far in advance should I book?
Scheduling varies by season. Spring and early summer are typically our busiest stretch, so booking a few weeks ahead gives you more flexibility on start date.
